Semiconductor applications require specialized equipment to handle gas applications and the corrosive fluids involved in wafer manufacturing and plating processing. Reliability and safety are crucial characteristics for pressure measuring instruments in these situations.
So, what is the best type of pressure gauge to use for the corrosive fluids in thesemiconductor industry?

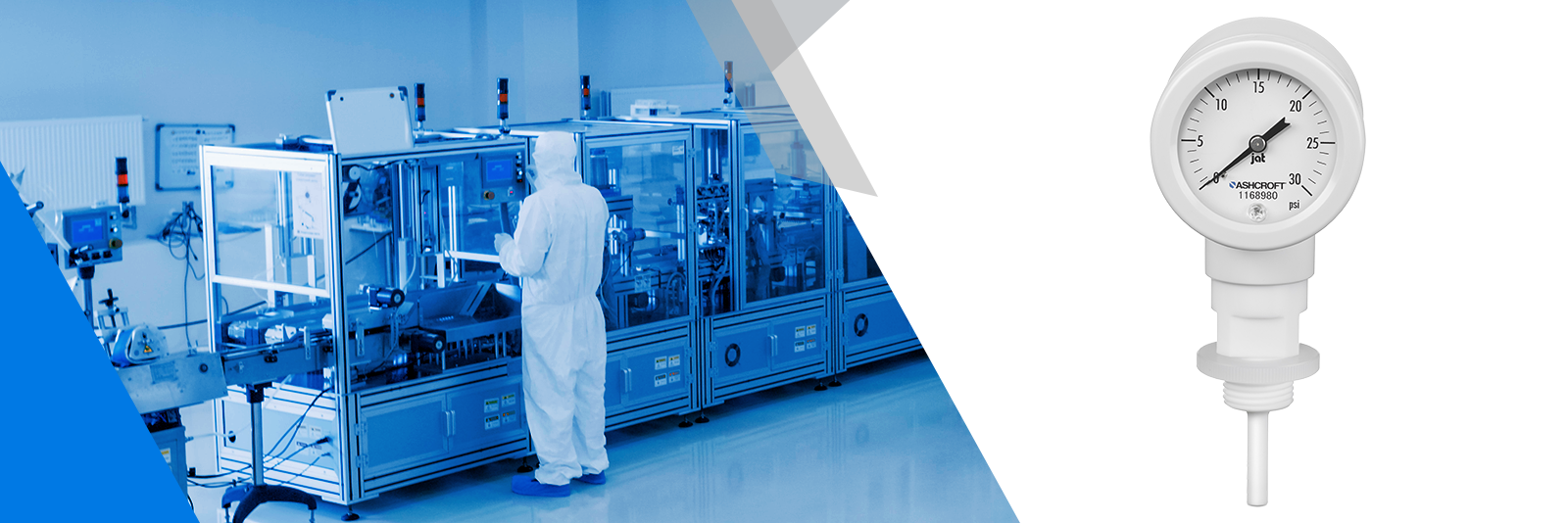

Ashcroft’s new63mm HPT anti-corrosion pressure gaugeoffers all the reliability you would expect from Ashcroft products with the protection and resilience of fluoropolymer materials.
Let’s go through the features of this new gauge and see how it stacks up.
Important Features
The HPT pressure gauge is cleaned in a class 10,000 cleanroom then nitrogen flushed and packaged into a polyethylene-sealed bag. It has an accuracy of ±1.5% of span (ranges 90 psi and above) or ±2.0% of span (ranges 90 psi and below).
Every gauge is nitrogen leak-tested to ensure superior quality, while the compact design of the bellows movement allows the gauge to be ideal for limited space installations.
Materials
The gauge is made with fluoropolymer wetted parts making it compatible with processes that use corrosive or non-contaminating fluids. In non-contaminating processes, the wetted parts prevent metal ion elution – perfect for ultrapure or deionized water processes.
Fluoropolymer is well suited for conditions where:
- Localized corrosion can appear in the semiconductor industry.
- There can be pitting or stress cracking in stainless steel, which is the major risk factor.
- There is extractive metallurgy/leaching of ore with acids.
- Mineral Acids and strong organic acids are present.
- Metastable process media that can undergo catalytic decomposition when in contact with molybdenum (i.e., nitric acid, hydrazine) are present.
Specifications
Case Size:
63 mm (50 mm Dial size)
Process Connection:
G 3/8
R 3/8
Tube Stub: 1/4 in., 3/8 in., 1/2 in., 6 mm, and 8 mm
Accuracy:
±1.5% of span: Pressure range 90 psi or more
±2.0% of span: Pressure range 90 psi or less
Industries and Applications
This product is for use in semiconductor, chemical and pharmaceutical industries. It works well in applications including:
- Wafer manufacturing
- Wet etching
- Ultrapure water applications
- Plating processing
It is not recommended to use this product in gas or high-temperature applications. If an application is using HF or HCl chemicals, they can permeate PTFE resulting in corrosion. For this type of process, you would need to use a second-generation fluoropolymer like FEP or PFA.
More generally, you should typically try to avoid polymers in plasma etching, as polymers can be damaged and generate particles.
Pros and Cons
The HPT gauge is a one-piece system with aPerfluoroalkoxydiaphragm. The PTFE material’s main advantage is it’s impervious to most chemicals. It also has lower levels of extractables and little to no trace metal content.
Other gauges can be made from stainless steel, which can corrode or release metal ions and oxides, which leads to contamination and particles. Even high-purity grades of stainless steel require secondary surface treatments (electropolished/passivated) to be used in these processes.
精读可以the price point – stainless steel wetted materials are much less expensive ($90--$270) depending on Ra finish and cleanroom level. PTFE materials can drive up the price to around three times that of stainless steel ($800).
If price is not a concern, this gauge can be a successful addition to your corrosive application equipment.
Wrap-Up
The HPT pressure gauge by Ashcroft is a solid choicefor corrosive fluids insemiconductor applications. Though the price is higher than a standard gauge, thefluoropolymer materials mean it stands up to the most challenging semiconductor process to give you reliable and safe pressure measurements.
Check out thedata sheetfor all the specs and more information on this new gauge.
If you want to learn more aboutpressure gauges, Ashcroft has a number of white papers, webinars and guides in theresource center.
Reach out today totalk to one of our industry expertsand get all your pressure gauge questions answered. Or take a look at our guide:
