Liquid-filled vs. Direct Drive Pressure Gauges vs. PLUS! Performance
Your application requires specialized pressure measuring equipment that has the proper accuracy, safety and quality features you need. If your application involves excessive pulsation and/or vibration you need to take measures to protect your pressure gauge from damage.
There are many options forpressure gaugesout there today that ease the effects of pulsation and vibration, so how do you know which one is right for your process?
Liquid-filled pressure gauges, direct drive pressure gauges and Ashcroft’sPLUS!™Performance option each have their own pros and cons to consider.
This article will describe each pressure gauge option and why you might consider them (or not consider them) for your application.
What is a Direct Drive Pressure Gauge?
Direct drive gauges are typically used for severe shock and vibration applications. They feature a movementless design, which eliminates movement wear under high vibration process conditions.
Direct drive gauges are without a movement, meaning there is only one moving part, the bourdon tube making them an alternative to conventional bourdon tube gauges with a movement when severe vibration and shock are concerns. These gauges are composed of a helically wound bourdon tube attached directly to the pointer shaft.
Direct Drive Gauge Pros
Here are some pros of direct drive gauges:
- Dampens effects of vibration and shock
- Liquid filling gauge case not required with direct drive design
- Fewer moving parts to wear out
- Steady pointer under harsh process conditions
- Available with mini seals (like theAshcroft 310)
Direct Drive Gauge Cons
Some of the cons of this type of gauge include:
- Higher cost than conventional bourdon tube gauges
- Risk of clogging with dirty process media
- Only available with Inconel bourdon tube, which may not be compatible with some process medias
- Gauge difficult to recalibrate
What is a Liquid-Filled Pressure Gauge?
As you might know from the name, aliquid-filled pressure gaugeis a pressure gauge that’s filled with a liquid like silicone or glycerin. This improves its performance in harsh conditions, including those with, pulsation and vibration.
Liquid-Filled Gauge Pros
The pros of liquid-fill include:
- Dampens effects of pulsation/vibration
- 保持水分的情况下和冷凝window, typically IP65/66
- Lubricates internal mechanical components
- Variety of manufacturers for more availability
- A throttle screw is typically standard to fight the effects of pulsation
- Best option for extremely severe applications
Liquid-Filled Gauge Cons
The cons of liquid-fill include:
- Potential for leaking
- Gauge fill needs to be removed before recalibrating zero and span
- Potential for freezing in low ambient temperature conditions
- Potential for fill discoloration
- High cost for inert liquid fills like Halocarbon or Flurolube required for oxygen service or other oxidizing media

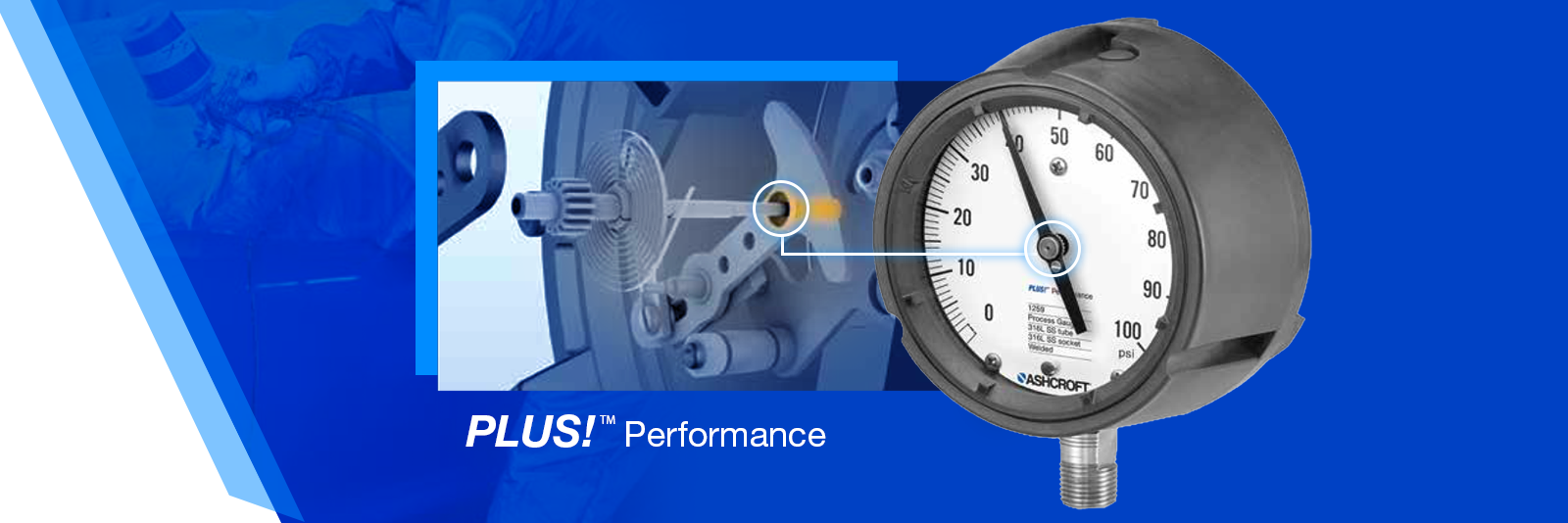

What is Ashcroft’sPLUS!™Performance?
PLUS!™Performance is a dry case pressure gauge that dampens pulsation and vibration and improves gauge readability without the headaches of a liquid-filled gauge.
This proprietary Engineered Dampening Media (EDM) of a gauge with thePLUS!™Performance option is injected into a canister that surrounds the gauge movement pinion shaft, movement plate, and backplate. The movement technology, orPLUS!™Performance, utilizes a thixotropic liquid that adheres to the pinion.
As gauge pressure increases or decreases, movement of the gauge pinion creates shear load, which causes EDM molecules to scatter. The EDM material gets thinner at the layer being sheared. With applications involving vibration, this allows dampening of the gauge pointer. This action allows for a steady, flutter-free pointer.
PLUS!™Performance Pros
This option has some advantages over standard dry or liquid-filled gauges:
- Dampens effects of pulsation/vibration
- No leaking concerns
- Safe for applications with oxidizing media at a considerably lower cost
- Lower cost than a liquid filled or direct drive gauge
- More eco-friendly disposal
- No fill lines like those associated with liquid-filled gauges
- Easier to recalibrate than a liquid-filled gauge (no leaky mess)
- Wider ambient temperature range than glycerin
- Can reduce inventory by not having to stock both dry and liquid-filled gauges
- Works well with diaphragm seals
PLUS!™Performance Cons
The cons include:
- Does not protect against water ingress
- Does not keep condensation off the window (but if you require IP65/66, you can order either the hermetically sealed version or the new X1P to meet specifications if there is a condensation issue)
You can learn more aboutPLUS!™Performance onin our brochure.
We don’t like to pressure you, but we have more information.
Now that you understand the difference between liquid-filled pressure gauges, direct drive pressure gauges and Ashcroft’sPLUS!™Performance, you can choose the solution that’s right for your application.
If you want to learn more aboutpressure gauges, here are a few related articles to check out:
- 固体面前与开放Front Pressure Gauges
- How To Identify Your Pressure Gauge and Get the Proper Replacement
- How Do I Select the Right Pressure Gauge Range?
- How Often Should I Check the Calibration of My Pressure Gauge?
- How Does Temperature Affect Pressure Gauge Performance?
- How Much Do Mechanical Pressure Gauges Cost?
Feel free to contact us today totalk to one of our industry expertsand get your questions answered.
