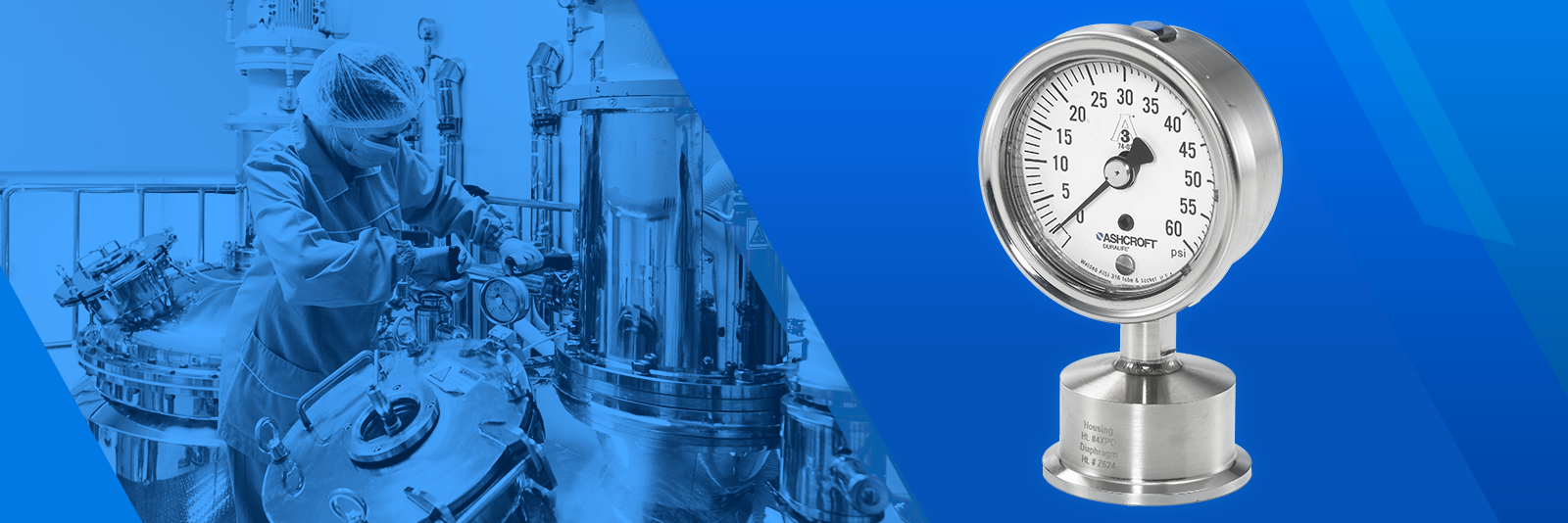

Product Review: 1032 Sanitary Pressure Gauge

pressure gauge|sanitary gauge

Industries such asfood/beverage, paint applications,pharmaceutical and biotechhave strict sanitary requirements to ensure that their products are manufactured in a clean and safe environment. Therefore, the pressure measuring instruments used in these applications must meet the same sanitary requirements.

Pressure gaugesthat are not designed for sanitary applications could create bacteria buildup that could contaminate your entire process.

That is why Ashcroft’s1032 sanitary pressure gaugecan be a good choice for your food or medical application needs because of the surface finish and Tri-clamp connection.

This article will take you through the 1032 gauge’s features and explain why it would make a great addition to your process.

Important Features

的一个shcroft 1032 sanitary gauge is 3A approved and is designed specifically to satisfy stringent sanitary requirements. It ensures reliability and process integrity for the food, pharmaceutical and bio-technical industries.

The 1032 gauge offers Ashcroft’s True Zero™ that reduces reading errors by using a "zerobox" instead of conventional pins.

It also has a number of other features that make this gauge stand out:

  • Heat lot traceable material certificates
  • Capability to withstand clean or steam in place (CIP/SIP)
  • Autoclave or sterilize with 3½ in. dial with polysulfone window option
  • Easy Zero™ provides external adjustability of instrument span (3½ in. dial)
  • 12-15 RA (microinches) electropolished diaphragm surface
  • conforman材料证书和证书ce supplied as standard to EN 10204:2004 3.1
  • PLUS!™Performance option

材料

This gauge consists of an electropolished diaphragm with 316L stainless steel or Hastelloy C276 diaphragm and housing options.

Specifications

Case Size:

2½ in., 3½ in. or 4½ in.

Process Connection:

1½ in. or 2 in. Tri-Clamp®

Accuracy:

2½ in., 3½ in.: All ranges over 100 psi Dry: ±1.5% of span, Liquid Filled or XLL: ±2.0% of span

2½ in., 3½ in.: All ranges to 100 psi Dry: ±2% of span, Liquid Filled or XLL: ±2.5% of span

4½ in.: ± 1.5% of span

Industries and Applications

This product is ideal for applications including:

  • Specialized OEM equipment
  • Food and Dairy
  • Pharmaceutical
  • Biotech
  • Medical Equipment
  • Filtration

Pros and Cons

Benefits include the 3A compliance to sanitary standard 74, making it perfect for food, pharmaceutical and other applications with strict sanitary requirements. For applications in Canada, CRN is available to ensure confidence in the product.

The range of options for materials, as well as the True Zero™ andPLUS!™Performance options are also positive aspects of Ashcroft’s 1032 gauge. The reliability and accuracy make this a solid addition to your pressure instrumentation.

Be sure to note if there is high vibration in your application. If so, you will need to consider fluid fill. Ashcroft offers various fill fluids for oxygen service or paint applications to mitigate the negative effects of vibration.

Wrap-Up

The 1032 sanitary pressure gauge by Ashcroft is a good optionfor your applications that have strict sanitary requirements.The stainless-steel construction and surface finish make it a reliable and safe choice for your most challenging applications.

Check out thedata sheetfor all the specs and more information on this sanitary gauge.

If you want to learn more aboutpressure gauges, Ashcroft has many white papers, webinars and guides in theresource center.

You can also check out other pressure gauge review blogs I’ve done:

Reach out today totalk to one of our industry expertsand get all your pressure gauge questions answered.
