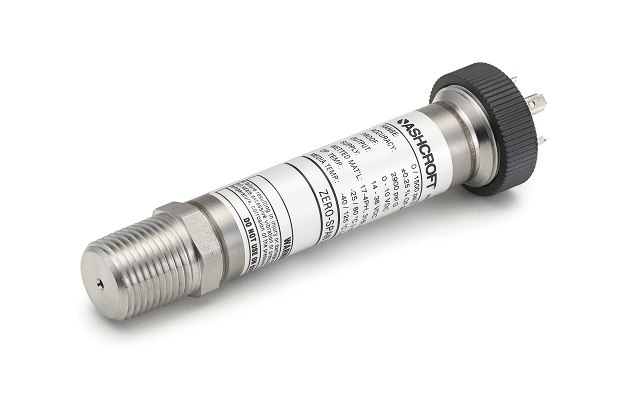

E2G – General Industrial Pressure Transducer
The Ashcroft®E2G general industrial pressure transducer is the optimal choice when a rugged, precise and repeatable pressure transducer is needed. Engineered for a wide array of applications, the E2G uses 316L stainless steel wetted materials and offers a wide selection of electrical terminations, process connections and analog outputs. Its flexible design allows it to be custom configured to meet nearly any requirement.
Key Features:
- Stainless steel housing, sensor and pressure connections.
- +/-0.25%, +/- 0.50% or +/-1.0% of span accuracy available
- Diaphragm available in 17-4 PH, 316L SS and A286 SS
- Standard ranges from vacuum to 20,000 psi and 0 to 500 psia (custom ranges available)
- External magnetic offset and span adjustment.
- Wide assortment of analog outputs, pressure and electrical connections.
- Custom cable lengths.
- Customizable configurations
- UL and CE approved
- RoHS compliant
应用程序:
Industrial and OEM Applications:
Off-Road Equipment
Construction Machinery
Agricultural
Process Automation and Controls
Hydraulic and Pneumatic Sensing
Compressor Control
引擎米onitoring
Diagnostic Kits
Process Applications:
Refrigeration
HVAC
Pump Monitoring
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
21°C ±2°C (70°F ±3°F)
Accuracy
±0.25% of span, ±0.50% of span, ±1.0% of span, (0-1.5# Range only available in ±0.5% and 1.0% accuracy) Terminal Point Method includes: hysteresis, linearity, repeatability, offset and span
Stability
≤±0.25% span/year at reference conditions
Durability
>10 million cycles
Process Connection
1/4 NPT Male
1/8 NPT Male
½ NPT Male
½-14 NPT Female
¼˝ VCR gland with 9⁄16-18 Female Swivel Nut
¼˝录像机腺9⁄16男旋转螺母
¼-18 NPT Female
1⁄8 -27 NPT Female
7⁄16-20 UNF-2B SAE J1926
7⁄16-20 UNJF-2A SAE Male (SAE J1926 O-Ring Boss seal)
7⁄16-20 UNJF-3A 37° Flare (SAE AS4395)
9⁄16-18 UNF-2B Female
G1/4 A-MALE (stud end DIN 3852-E G¼)
G½ B Male (EN837-1)
G¼ B-Male (EN837-1)
Pressure Ranges
0 to 500 psi absolute
Vacuum to 20,000 psi
Ingress Rating
IP66
IP67
IP69K (consult factory)
Shock & Vibration Resistance
80g, 6 ms, Haversine, 10g RMS 20-20,000Hz vibration
Wetted Material
Diaphragm: 17-4PH Stainless steel, 316L Stainless steel, 316L Stainless steel liquid isolated, A286 Stainless steel
Process Connection: 316L Stainless Steel
Non-Wetted Materials
Housing: 316L Stainless steel
Outputs
0-10 Vdc (3 Wire)
0-5 Vdc (3 Wire)
0.1-10 Vdc (3 Wire)
0.1-5 Vdc (3 Wire)
0.5-4.5 Vdc (3 Wire)
1-11 Vdc (3 Wire)
1-5 Vdc (3 Wire)
1-6 Vdc (3 Wire)
20-4 mA (2 Wire)
4-20 mA (2 Wire)
