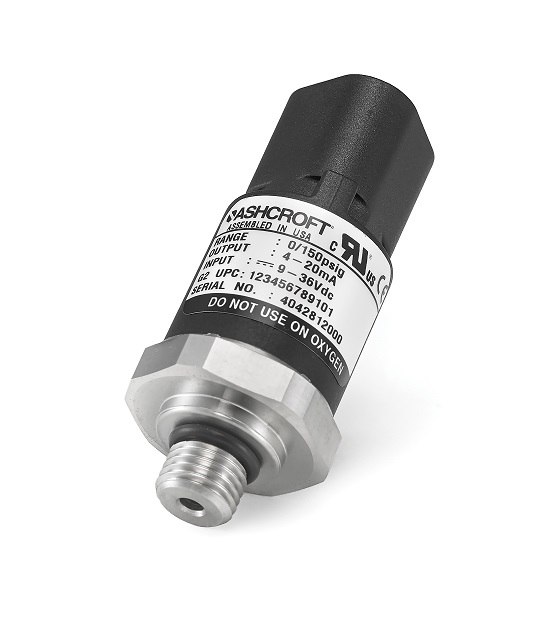

G2 Pressure Transducer
The Ashcroft®G2 pressure transducer combines performance with value to meets the requirements of original equipment manufacturers. The field-proven polysilicon thin film pressure sensor provides excellent overpressure capability and outstanding durability despite substantial shock and vibration. A perfect choice for harsh operating environments.
Key Features:
- Pressure ranges from vacuum to 20,000 psi
- +/- 0.25% of span static accuracy (BFSL) at reference temperature
- All stainless steel wetted materials
- Highly configurable; wide selection of pressure connections and electrical terminations
- Voltage and 4-20mA output options
- High EMI/RFI immunity rating
- UL/cUL and CE approved
- RoHS compliant
应用程序:
我ndustrial and OEM Applications:
Off Road Vehicles
Construction Machinery
Hydraulic and Pneumatic Sensing
Performance Racing
Railroad / Transportation
Agricultural Implements
Process Applications:
Compressor Control
暖通空调/ R
Process Automation and Control
Hydraulic and Pneumatic Sensing
Pump Monitoring
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
72°F (22°C)
Accuracy
±0.25% of span Static BFSL (Best Fit Straight Line Method); includes non-linearity, hysteresis and non repeatable effects at Reference Temperature
Best Fit Straight Line (BFSL)
±0.25% of span
Stability
≤±0.25% span/year at reference conditions
Durability
>50 million cycles
Pressure Ranges
Compound and gauge pressure, 30 to 20,000 psi
Wetted Material
Diaphragm: 17-4PH Stainless steel
Process Connection: 304 Stainless steel
Total Error Band Accuracy
± 1.0% of span from -4 to 185°F (-20 to 85ºC) ± 1.5% Span from -40 to -4°F (-40 to -20ºC) & 185 to 257°F (85 to 125°C)
Total Error Band Accuracy: includes the combined effects of non-linearity (Terminal Point Method), hysteresis, non-repeatability, temperature and zero offset and span setting errors
Outputs
0-5 Vdc, 0-10 Vdc, 1-5 Vdc, 1-6 Vdc, 4-20mA, 0.5-4.5Vdc (9-36Vdc supply), 0.5-4.5 Vdc Ratiometric (5Vdc supply)
我ngress Rating
我P66
Non-Wetted Materials
Housing: 20% Glass Reinforced Nylon, Fire retardant to UL94 V1
Related Products
联系阿什克罗夫特
Ashcroft is a trusted source for pressure, temperature, and test instruments around the world. Learn more about how we can help you protect your people, processes, and profits.
